Can Pagel's test detect a feedback?

A genome and a trait that shape each other, and the standard test for correlated evolution, scored on data where the truth is known. All the relevant files are in analyses/pagel/.

The question

Pagel's test asks whether two binary characters evolved dependently on a tree: it compares a Markov model in which each character's transition rates depend on the other character's state against one in which they do not, with a likelihood-ratio test. On real data the characters might be a habitat and a gene family's presence. Does the test detect a true feedback between them, does it detect each direction alone, and does it reject at the nominal rate when there is nothing to find?

Why real data cannot answer it

On a real clade nobody knows whether the habitat and the gene family depend on each other; that is the question being asked. In a simulated dataset the dependency is known, because it is written into the run: which rate depends on which state, and by how much. And the simulation can add a second family that depends on nothing, carried on the very same trees, so any signal the test finds on that family is an artifact.

The run

One joint run simulates the genome and the habitat together along a dated tree of 150 extant tips. Two connections, one in each direction, close the feedback loop: the habitat multiplies the loss rate of every gene family (a parasitic lineage loses gene copies five times faster), and the absence of one family, called A, multiplies the rate of switching into the parasitic habitat by twelve. The family stands for a gene required for free living: a lineage that loses it is pushed toward parasitic habitats, and a parasitic lineage loses genes faster.

from zombi2 import joint, traits
from zombi2.genomes import family, genome
from zombi2.params import PerCopy, PerLineage
from zombi2.species import simulate_species_tree

tree = simulate_species_tree(birth=1.0, n_extant=150, seed=1).complete_tree
result = joint.simulate(
    genome(duplication=0.05, origination=8.0, initial_families=40,
           loss=PerCopy(0.25).scaled_by("trait", {"parasitic": 5.0, "free-living": 1.0}),
           families=[family("A")]),
    traits.discrete(states=["free-living", "parasitic"], start="free-living",
                    switch={"free-living->parasitic": PerLineage(0.08).scaled_by(
                                "genomes:A", {"present": 1.0, "absent": 12.0}),
                            "parasitic->free-living": 0.10}),
    tree=tree, seed=1)

Four experiments of 150 replicates each, on the same trees with matched seeds: both connections, each connection alone, and no connections, in which both are written but multiply by one. Each replicate also carries a control character, connected to nothing: one family from a separate genome run on the same tree.

What the test reports

For every replicate we fit fitPagel (from phytools) to the habitat paired with family A's tip presence, and to the habitat paired with the control: 1,200 fits, of which 341 were skipped because a character invariant at the tips cannot be fit.

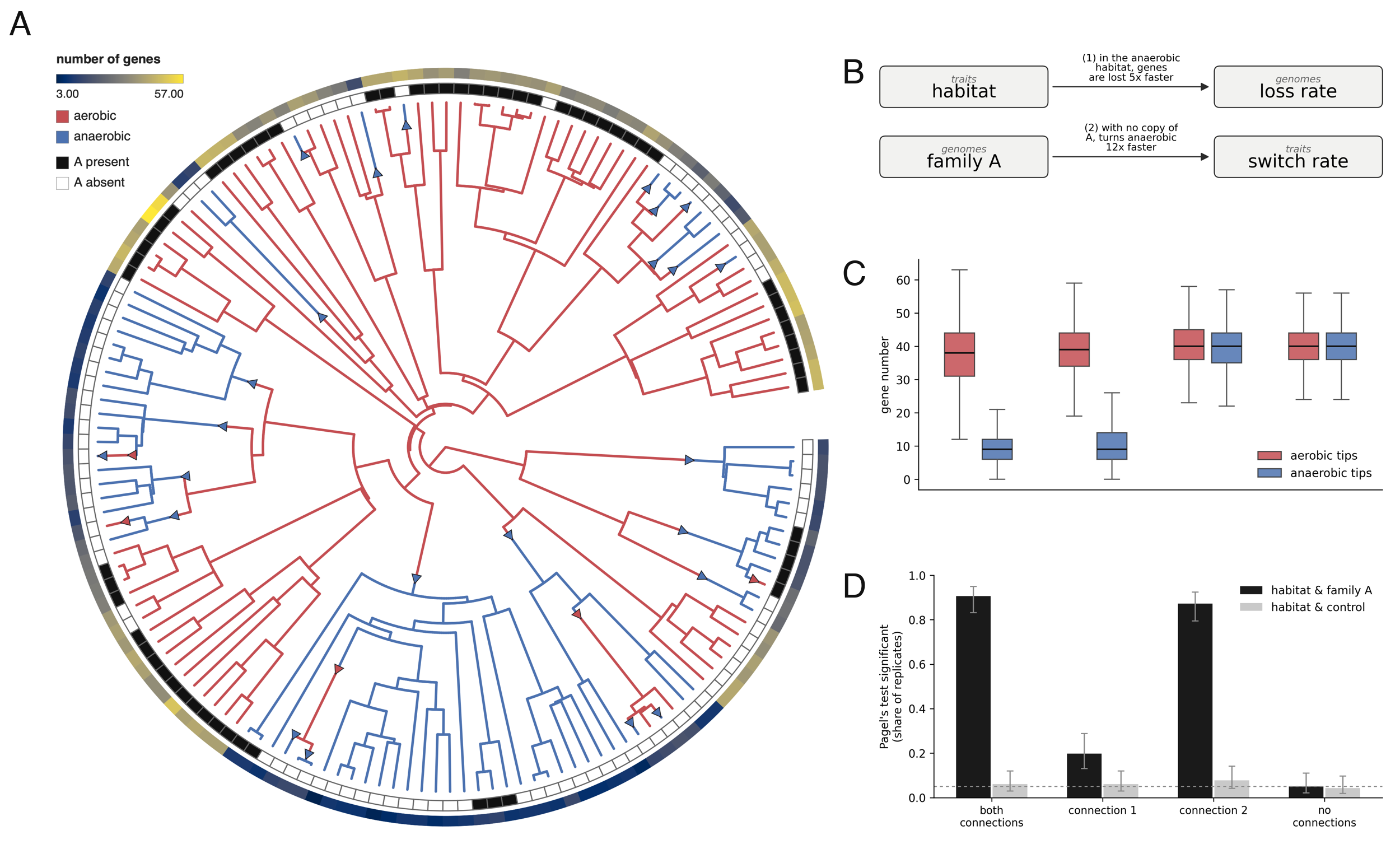

experiment	habitat × A	habitat × control
both connections	90.6%	6.0%
connection 1: the habitat drives the loss rate	19.8%	6.0%
connection 2: family A drives the switch rate	87.3%	7.8%
no connections	5.0%	4.3%

The test is well calibrated: with no connections it rejects at the nominal 5%, and so does the control in every experiment, even on trees whose gene content and habitat are genuinely dependent. Its power, however, depends on which rate the connection is written on. With both connections, and with connection 2 alone, the dependence is detected in about nine replicates of ten. With connection 1 alone it is detected in one replicate of five, even though that connection is a five-fold change in the loss rate of every family in the genome.

Why the asymmetry

A connection produces extra events only where the driving state is present. Lineages missing family A are common, because copies are steadily lost, so the twelve-fold switch rate applies across much of the tree; parasitic lineages are rare at the base switch rates, so the five-fold loss applies to few branches. Tip presence is also a coarse measure of the loss rate: a family present in several copies must lose them all before the character changes.

Two practical lessons follow, as in the BiSSE example. A non-significant Pagel test says little about whether the habitat shapes the genome: the direction that is nearly invisible here is a strong, genome-wide effect. And a significant test reports dependence, not a direction: the both-connections experiment and the connection-2 experiment cannot be told apart from the test result.
